12V Linear Actuator For Massage Chair

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Basic Info


Model No.: XYA5

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N


Additional Info


Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port


Product Description

Product Description:

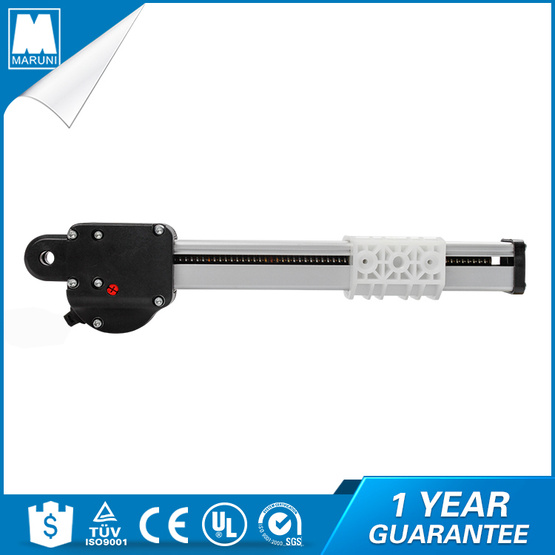

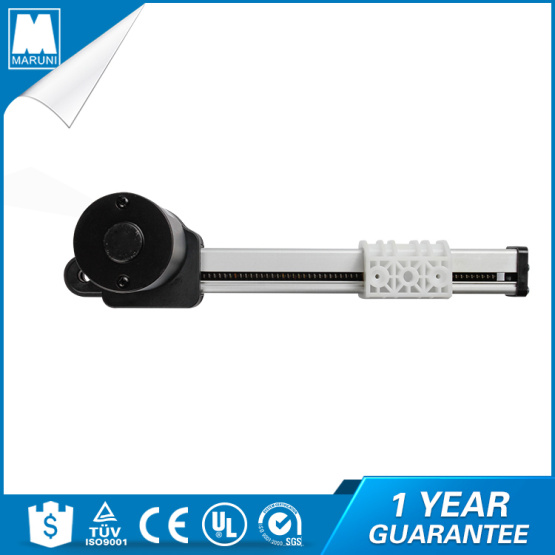

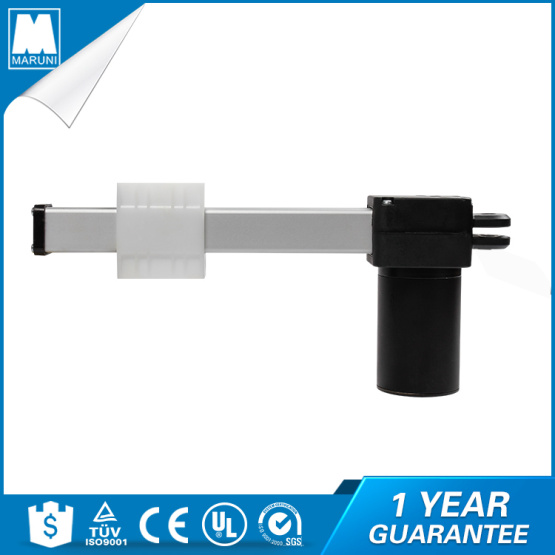

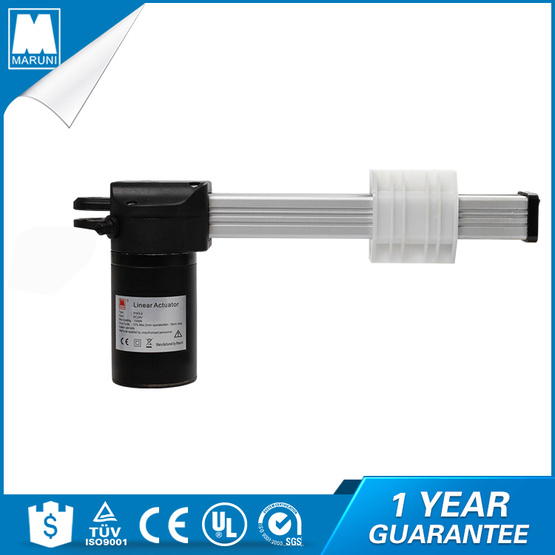

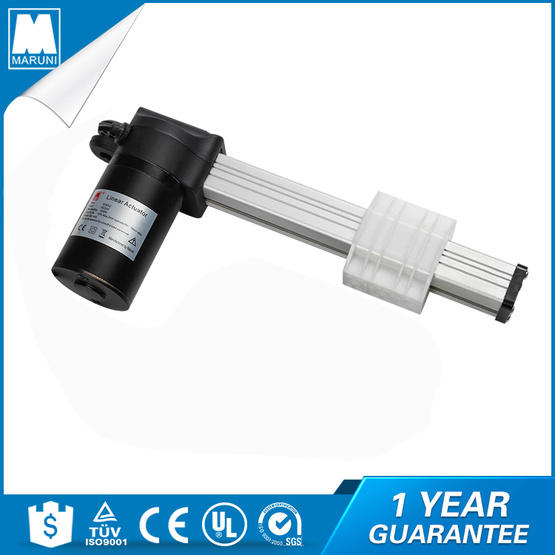

Linear Actuator For Massage Chair



Linear Actuator 12V For Sale Linear Actuator For Sofa can be found in many different appliances and machinery, but one of its most prevalent uses is in the application and creation of furniture. In furniture making, they help automate a number of processes and functions such as eliminating the monotony of everyday tasks, which in turn speeds up production as well as helping prevent workplace injuries in the factories that make furniture.Power DC Linear Actuator For Massage Chair can be found in many different appliances and machinery, but one of its most prevalent uses is in the application and creation of furniture. In furniture making, they help automate a number of processes and functions such as eliminating the monotony of everyday tasks, which in turn speeds up production as well as helping prevent workplace injuries in the factories that make furniture.

Linear Actuators are Widely used in 400MM Sofa Linear actuator(Including24V Electric Sofa Chair ,Electric Lift Chair,Electric Sofa,Electric Massage Chair,Smart Kitch Hood,Adjustable Bed,Adjustable Table),Medical Care(Inclding Patient Lift,Medical Bed,Dental Chair,Adjustable Exam Table Actuator,Electric Wheelchair).


Power DC Linear Actuator For Massage Chair can be found in many different appliances and machinery, but one of its most prevalent uses is in the application and creation of furniture. In furniture making, they help automate a number of processes and functions such as eliminating the monotony of everyday tasks, which in turn speeds up production as well as helping prevent workplace injuries in the factories that make furniture.


It is available with optional IP 54 protection and Hall sensors for position feedback.Its compact design supports load design supports load rating up to 6000N.And actuator for electric sofa is recommended to be used for chair applications.Sofa Actuator,It has the below features:up to 6000N load,quiet and powerful design.The current &speed are tested when the actuator is extending under push load.

The Input Voltage for this Linear Actuator For Sofa Motor is 12VDC/24VDC/36VDC.In addition,the XYA2 Electric Sofa Motor is available with an optional IP 54,IP 66 or IP 66W rating.Smart Furniture is typical application for the XYA3 series linear actuator. Office Chair Linear Actuator are high quality with low noise,over-load protection are installed.Actuator For Massage Sofa  are widely used in machine tooles and industrial machinery,in computer peripherals such as disk drives and printers,in valves and dampers,and in many other places where linear motion is required.6000N Stair Lift Chair are quiet and powerful design.Electric sofa,the thrust up to 8000N in push,and up to 6000N in pull.Elegant and compact design with small installation dimensions.

ZHEJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY CO.LTD will provide a full-service to keep you up and running and meet your unique equipment requirements. If you are interested in China Sofa Actuator Linear, You will be amazed by the variety of the product choices such as linear actuator, electric linear actuator, actuator.



Features:Basic and economic design,Up to 8000N load capacity,direct mounting on control box possibility,Long lifetime.


Mimimum installation size(distand between the push holes and the two holes before and after the return of the putter)L=S(stroke)+175mm,the distance between the push and the two holes before and after is extended to =2SX(stroke)+175mm.

Standard protection class:IP 54.Noise level 48 dB.


Application:Electric linera actuator for recliner will open and close the lift mechanism of power recliner or lift chair.Connects to motor handset hand control via 5 pin style connector,and connects to the power transformer via the stand 2 pin style connector.



Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke[From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey



2


Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
