Electric Linear Actuator For Medical Bed

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Basic Info


Model No.: XYA9

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N


Additional Info


Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port


Product Description

Product Description:

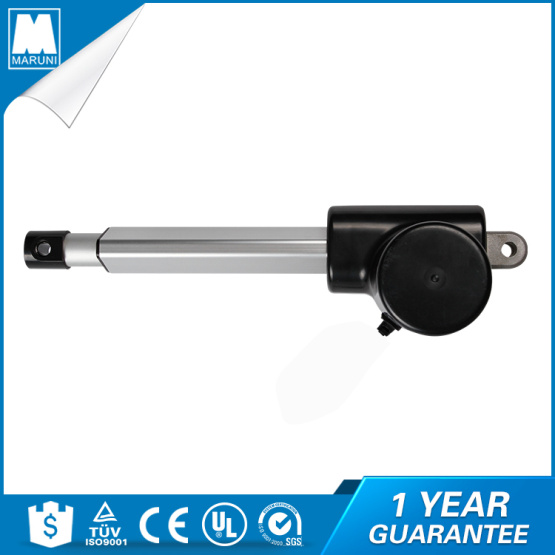

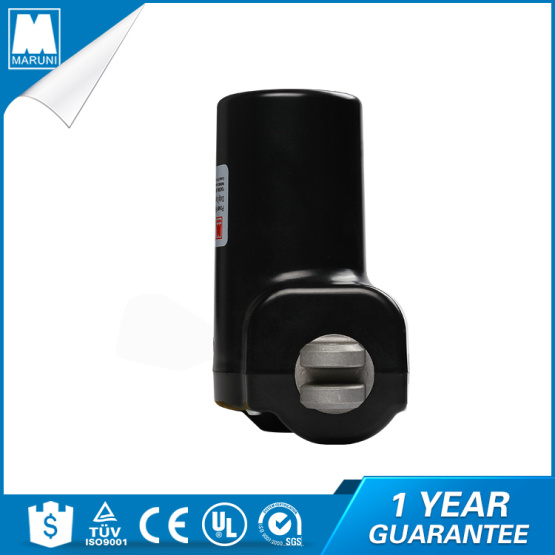

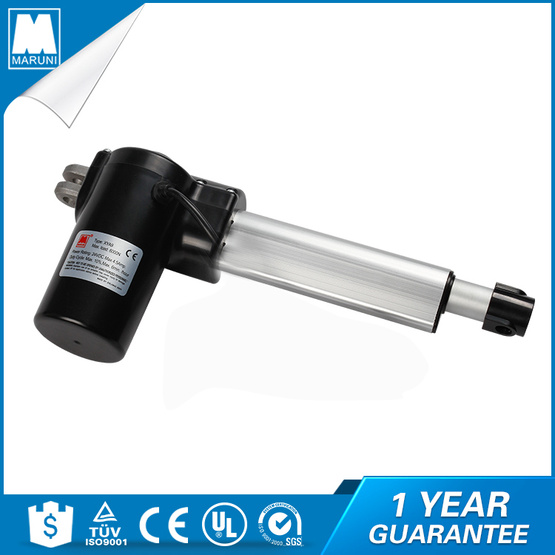

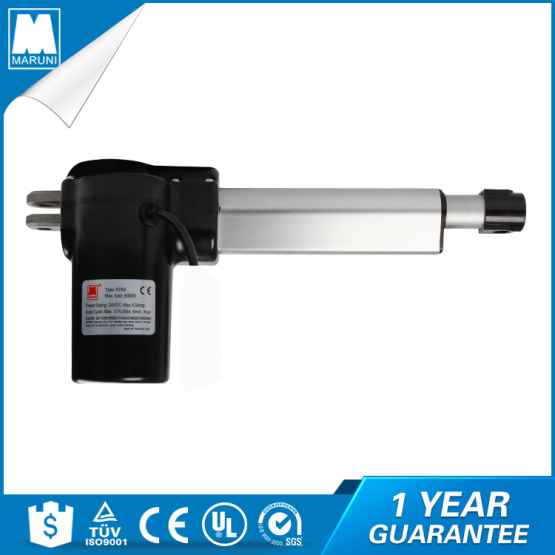

Electric Linear Actuator For Medical Bed


Hospitals across the world face a reality in which there are fewer staff to attend to an increasing number of patients. Those currently in need include the elderly, obese, and patients with multiple diagnoses. Both trends call for improved applications able to help improve comfort for patients, ergonomics for staff and efficiency levels for hospitals. Using Electric Medical Bed actuator systems to provide movement and intelligent features in hospital beds will allow manufacturers to meet demands and have several advantages in a fierce market.


Hospital Bed Motor Actuator Parts has been revolutionized by customizable technologies, notably electric linear actuators. From lift chair and patient hoist actuators to hospital bed actuators, Xinyi Bed Actuator has provided manufacturers with medically certified linear motion products which have been designed specifically for the healthcare industry.  These products are used to make healthcare and home settings safer and more efficient than ever.


Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke[From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey


1



Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
