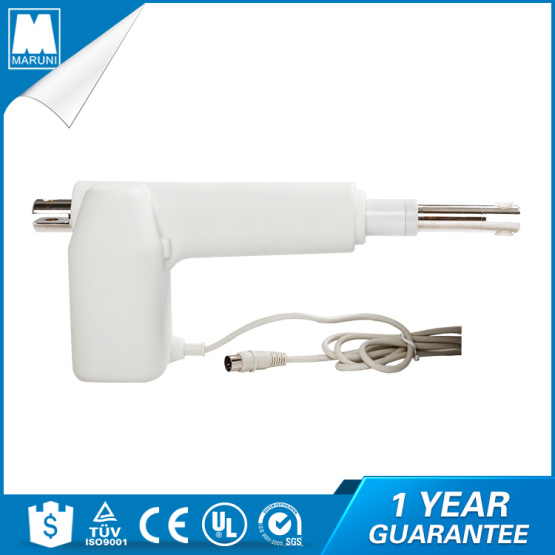

Actuator For Adjustable Wheelchair

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Basic Info


Model No.: XYA2

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N


Additional Info


Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port


Product Description

Product Description:

Wheelchair Lift Motor


ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY had always been devoted to the research and development of the Actuator For Electric Wheelchair

Linear Actuator For Wheelchair to provide the user with movement. Sitting in the same position can get tiring for Wheelchair Linear Actuator. Changing positions in a static wheelchair can make the person uncomfortable and could lead to pressure sores. Integrating a wheelchair with GEAR MOTOR can help provide movement to different parts of the wheelchair, which will allow users to adjust their positions.

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY  offers Wheelchair Lift Linear Actuator.These specialized actuators offer the following benefits:

· Quality raw materials engineered to perfection

· Reliability and safety

· Durable products

· Small in size

· Accurate vertical and horizontal adjustment

· Smooth and quiet operation

· Increased freedom of design

· Reduced maintenance due to use of high quality products


Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 8000N,Pull 6000N

Speed: (4.5mm/s 8000N) (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5~40℃

Min.install dimension:315mm(175+stroke[From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

timg

Noted:

When the stroke is less than 110mm,the Lmin is 283mm.If the stroke is more than 110mm,Lmin=175+Stroke

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.



Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector

produce linear actuator with best motor

We produce linear actuator with clean production line
